Codemagnet is here again to help you out on how you can amazing Plot 3D Graphs Using Python in python. These 3D Graphs Using Python which is created with the help of matplotlib library can be used in your data science projects and machine learning projects.

3D Plots & Lines

In Plot 3D Graphs Using Python. The most basic three-dimensional plot is a line or scatter plot created from sets of (x,y,z) triples. In analogy with more common two-dimensional plots, we can create these using the ax.plot3D and ax.scatterd3D functions. The call signature of these is nearly identical to that of their two-dimensional counterparts.

Here we will plot a trigonometric spiral, along with some points drawn randomly near the line:

Code:

import numpy as np
import matplotlib.colors as col
from mpl_toolkits.mplot3d import Axes3D
import matplotlib.pyplot as plt

# Create a new figure
fig = plt.figure()
ax = fig.add_subplot(111, projection='3d')

# Data for a three-dimensional line
z = np.linspace(0, 15, 1000)
x = np.sin(z)
y = np.cos(z)
ax.plot3D(x, y, z, 'grey')

# Data for three-dimensional scattered points
z = 15 * np.random.random(100)
x = np.sin(z) + 0.1 * np.random.randn(100)
y = np.cos(z) + 0.1 * np.random.randn(100)
ax.scatter3D(x, y, z, c=z, cmap='Greens')

plt.show()

Output:

Explanation:

1. Create a 3D axis: Before plotting, we create a figure using plt.figure() and then add a 3D subplot to this figure with fig.add_subplot(111, projection='3d'). This creates an Axes3D object ax.
2. Plotting the 3D line and scatter points: We then use ax.plot3D to plot the 3D line and ax.scatter3D to plot the 3D scatter points on this axis.

Three-Dimensional Contour Plots

Three-dimensional contour plots are an extension of two-dimensional contour plots into the third dimension. While two-dimensional contour plots use the ax.contour method, three-dimensional contour plots use the ax.contour3D method. Both require the input data to be in the form of two-dimensional regular grids, with the z-values evaluated at each (x, y) point.

To illustrate this concept, let’s create a three-dimensional contour diagram of a three-dimensional sinusoidal function. The process involves the following steps:

1. Generate Grid Data: Create a meshgrid of x and y values.
2. Define the Function: Compute z-values for each (x, y) pair using the sinusoidal function.
3. Create the Plot: Use the ax.contour3D method to generate the contour plot.

Here is the complete code and a detailed explanation:

import numpy as np
import matplotlib.pyplot as plt
from mpl_toolkits.mplot3d import Axes3D

# Create a meshgrid of x and y values
x = np.linspace(-5, 5, 100)
y = np.linspace(-5, 5, 100)
X, Y = np.meshgrid(x, y)

# Define the sinusoidal function for z-values
Z = np.sin(np.sqrt(X**2 + Y**2))

# Create a new figure and a 3D axis
fig = plt.figure()
ax = fig.add_subplot(111, projection='3d')

# Generate the 3D contour plot
contour = ax.contour3D(X, Y, Z, 50, cmap='viridis')

# Add labels and a color bar
ax.set_xlabel('X axis')
ax.set_ylabel('Y axis')
ax.set_zlabel('Z axis')
fig.colorbar(contour, ax=ax, shrink=0.5, aspect=5)

# Show the plot
plt.show()

Output:

Detailed Explanation for Plot 3D Graphs Using Python:

1. Create a Meshgrid:
   • We start by generating a meshgrid using np.linspace and np.meshgrid.
   • np.linspace(-5, 5, 100) creates 100 linearly spaced points between -5 and 5 for both x and y.
   • np.meshgrid(x, y) creates a 2D grid of x and y values, which is necessary for evaluating the function over a regular grid.
2. Define the Sinusoidal Function:
   • The sinusoidal function is defined as Z = np.sin(np.sqrt(X**2 + Y**2)).
   • This function calculates z-values for each (x, y) pair in the grid, resulting in a 3D surface that exhibits sinusoidal wave patterns.
3. Create the Figure and 3D Axis:
   • We create a new figure with plt.figure().
   • We add a 3D subplot to this figure using fig.add_subplot(111, projection='3d'). This gives us an Axes3D object, ax, which we use to plot the 3D contour.
4. Generate the 3D Contour Plot:
   • We use the ax.contour3D method to create the contour plot.
   • ax.contour3D(X, Y, Z, 50, cmap='viridis') generates 50 contour levels and colors them using the ‘viridis’ colormap.
5. Add Labels and Color Bar:
   • We set the x, y, and z labels using ax.set_xlabel, ax.set_ylabel, and ax.set_zlabel.
   • We add a color bar to the plot with fig.colorbar(contour, ax=ax, shrink=0.5, aspect=5) to provide a reference for the contour levels.
6. Show the Plot:
   • Finally, we display the plot using plt.show().

This code produces a detailed and informative three-dimensional contour plot, which is useful for visualizing the variations of a function in 3D space. By understanding the process and the code, you can create similar plots for other functions and datasets.

Wireframes and Surface Plots

Wireframes and surface plots are two powerful types of three-dimensional plots used to visualize gridded data in Python. These plots take a grid of values and project it onto a three-dimensional surface, making it easier to visualize complex data and understand its structure.

Wireframe Plots

Wireframe plots create a three-dimensional surface using lines to connect data points on a grid. They give a skeletal representation of the surface, showing the shape and structure without filling in the surface. This can be particularly useful for understanding the underlying geometry of the data.

Surface Plots

Surface plots, on the other hand, create a filled three-dimensional surface using a grid of data points. These plots not only show the shape and structure of the data but also provide additional visual information through color gradients, which can represent variations in the z-values.

Let’s explore both wireframe and surface plots using an example of a three-dimensional sinusoidal function.

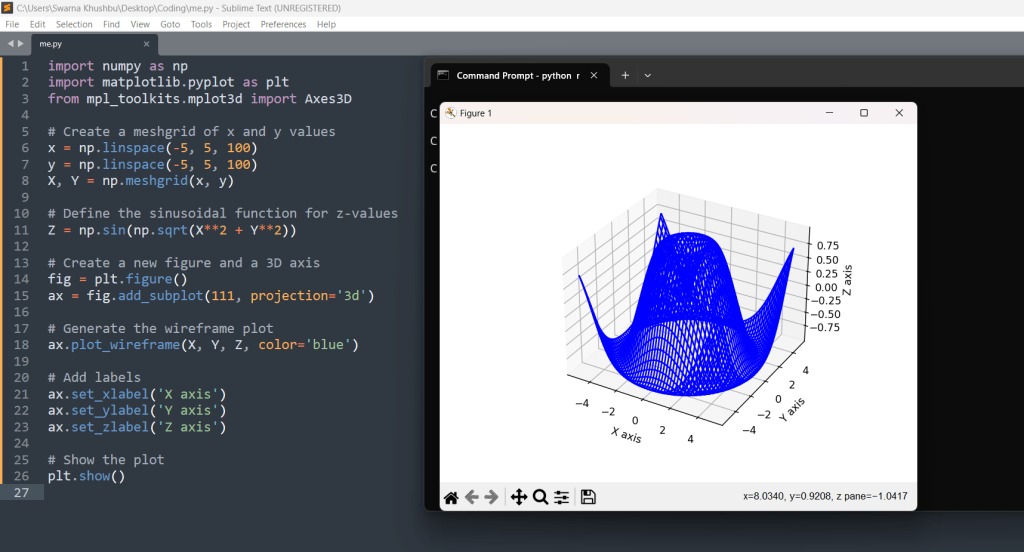

Example: Wireframe Plot

import numpy as np
import matplotlib.pyplot as plt
from mpl_toolkits.mplot3d import Axes3D

# Create a meshgrid of x and y values
x = np.linspace(-5, 5, 100)
y = np.linspace(-5, 5, 100)
X, Y = np.meshgrid(x, y)

# Define the sinusoidal function for z-values
Z = np.sin(np.sqrt(X**2 + Y**2))

# Create a new figure and a 3D axis
fig = plt.figure()
ax = fig.add_subplot(111, projection='3d')

# Generate the wireframe plot
ax.plot_wireframe(X, Y, Z, color='blue')

# Add labels
ax.set_xlabel('X axis')
ax.set_ylabel('Y axis')
ax.set_zlabel('Z axis')

# Show the plot
plt.show()

Output:

Detailed Explanation:

1. Create a Meshgrid:
   • Use np.linspace to generate 100 linearly spaced points between -5 and 5 for both x and y.
   • Create a 2D grid of x and y values using np.meshgrid(x, y).
2. Define the Sinusoidal Function:
   • Calculate z-values for each (x, y) pair using the function Z = np.sin(np.sqrt(X**2 + Y**2)).
3. Create the Figure and 3D Axis:
   • Use plt.figure() to create a new figure.
   • Add a 3D subplot to this figure with fig.add_subplot(111, projection='3d').
4. Generate the Wireframe Plot:
   • Use ax.plot_wireframe(X, Y, Z, color='blue') to create the wireframe plot with blue lines.
5. Add Labels:
   • Label the x, y, and z axes using ax.set_xlabel, ax.set_ylabel, and ax.set_zlabel.
6. Show the Plot:
   • Display the plot with plt.show().

Example: Surface Plot

import numpy as np
import matplotlib.pyplot as plt
from mpl_toolkits.mplot3d import Axes3D

# Create a meshgrid of x and y values
x = np.linspace(-5, 5, 100)
y = np.linspace(-5, 5, 100)
X, Y = np.meshgrid(x, y)

# Define the sinusoidal function for z-values
Z = np.sin(np.sqrt(X**2 + Y**2))

# Create a new figure and a 3D axis
fig = plt.figure()
ax = fig.add_subplot(111, projection='3d')

# Generate the surface plot
surf = ax.plot_surface(X, Y, Z, cmap='viridis')

# Add labels and a color bar
ax.set_xlabel('X axis')
ax.set_ylabel('Y axis')
ax.set_zlabel('Z axis')
fig.colorbar(surf, ax=ax, shrink=0.5, aspect=5)

# Show the plot
plt.show()

Detailed Explanation:

1. Create a Meshgrid:
   • Same process as the wireframe plot.
2. Define the Sinusoidal Function:
   • Same process as the wireframe plot.
3. Create the Figure and 3D Axis:
   • Same process as the wireframe plot.
4. Generate the Surface Plot:
   • Use ax.plot_surface(X, Y, Z, cmap='viridis') to create a surface plot with the ‘viridis’ colormap.
5. Add Labels and Color Bar:
   • Label the axes using ax.set_xlabel, ax.set_ylabel, and ax.set_zlabel.
   • Add a color bar to the plot with fig.colorbar(surf, ax=ax, shrink=0.5, aspect=5) to provide a reference for the color gradient representing z-values.
6. Show the Plot:
   • Display the plot with plt.show().

In Plot 3D Graphs Using Python, Wireframe and surface plots are essential tools for visualizing three-dimensional data in Python. Wireframe plots provide a skeletal representation of the data, making it easier to see the underlying structure, while surface plots offer a filled representation with color gradients that add more detail and visual information.

Using these plots, you can better understand and interpret complex datasets, making them invaluable in data analysis and scientific research.

3D graphs in Python, particularly those created using Matplotlib, provide powerful and versatile tools for data visualization. They allow us to represent complex datasets in a more intuitive and comprehensible manner.

Whether you are dealing with scientific data, engineering problems, or any other domain where multidimensional data needs to be visualized, 3D plotting can be an invaluable asset.

Key Benefits and Applications

1. Enhanced Data Understanding:
   • Visual Clarity: 3D graphs make it easier to grasp the structure and relationships within the data that may not be apparent in 2D plots.
   • Depth Perception: Adding a third dimension provides depth, making it easier to distinguish between data points and comprehend the spatial relationships.
2. Types of 3D Plots:
   • Line and Scatter Plots: Useful for representing trajectories, paths, or scattered data points in a 3D space. They help in visualizing the distribution and trends within the data.
   • Surface and Wireframe Plots: Ideal for visualizing mathematical functions, topographical data, or any other dataset that can be represented as a continuous surface. They provide a detailed view of the data’s structure.
   • Contour Plots: Useful for representing three-dimensional data in two dimensions, providing a different perspective by showing the data’s contour lines.
3. Interactive Visualization:
   • Matplotlib’s 3D plotting capabilities allow for interactive visualizations, where users can rotate, zoom, and pan the plot to explore the data from different angles. This interactivity enhances the analysis process, making it easier to identify patterns and anomalies.
4. Customization and Flexibility:
   • Extensive Customization: Matplotlib offers a wide range of customization options, from colors and labels to viewing angles and data point markers.
   • This flexibility allows for the creation of plots that meet specific presentation or publication standards.
   • Integration with Other Libraries: Matplotlib seamlessly integrates with other Python libraries such as NumPy, Pandas, and SciPy, making it a versatile choice for data analysis and visualization.

Challenges and Considerations

1. Performance:
   • For very large datasets, 3D plotting can become computationally intensive. It’s essential to optimize the code and use efficient data handling techniques to maintain performance.
2. Complexity:
   • 3D plots can sometimes become cluttered and difficult to interpret, especially if the data is dense. Careful consideration of plot design and data representation is necessary to avoid confusion.
3. Learning Curve:
   • Although Matplotlib is user-friendly, creating complex 3D plots requires a deeper understanding of the library’s functionalities and capabilities. Investing time in learning these can significantly enhance the quality of visualizations.

Conclusion

3D plotting with Matplotlib in Python offers a robust and versatile means of visualizing complex datasets. The ability to represent data in three dimensions provides significant advantages in terms of understanding and interpreting data, revealing insights that might be missed in two-dimensional representations.

Despite some challenges, the benefits of using 3D plots in data analysis and presentation are substantial.

3D Graphs Using Python

By leveraging the power of Matplotlib’s 3D plotting capabilities, analysts, scientists, and engineers can create detailed and interactive visualizations that enhance their understanding of the data, facilitate better decision-making, and communicate findings more effectively.

Whether for academic research, industrial applications, or everyday data analysis, mastering 3D plots with Matplotlib is a valuable skill that can greatly expand your data visualization toolkit.
